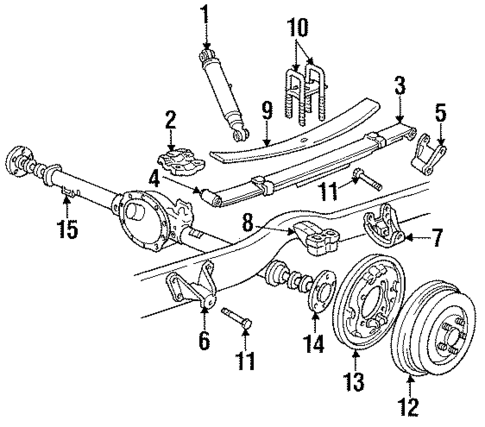

Rear Suspension for 1990 Dodge W150
No.
Part # / Description / Price
Price
1
Shock Absorber
Mopar
Mopar Description: 3/4 & 1 ton heavy duty, 4wd. 1/2 & 3/4 ton light duty, 4wd. All models. Standard. 4wd. Standard Suspension. 1" Dia. Heavy Duty Suspension. 1 3/16" Dia.
1
Shock Absorber Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 2wd. 2wd, 1 diameter. All models. Standard. 2wd. Standard Suspension. 1" Dia.
2
Plate Mopar
Mopar Positions: Left
Description: 1/2 & 3/4 ton light duty, 2wd. 3/4 & 1 ton heavy duty, 2wd.
2
Plate Mopar
Mopar Positions: Right
Description: 3/4 & 1 ton heavy duty, 2wd. 1/2 & 3/4 ton light duty, 4wd, 1/2 ton.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 4wd, 7 leaf 3250/3650 lb. All models. 2wd. 7 leaf. All models. 4wd. 7 leaf. Standard. 3/4 & 1 ton heavy duty, 4wd, 7 leaf 3250/3650 lb.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 2wd, snc 1350/1520 lb. 3/4 & 1 ton heavy duty, 2wd, snc 1350/1520 lb.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 2wd, snf 1650/1820 lb. 3/4 & 1 ton heavy duty, 2wd, snf 1650/1820 lb.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 4wd, 5 leaf. All models. 4wd. 5 leaf. 3/4 & 1 ton heavy duty, 4wd, 5 leaf.
3
Leaf Spring Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: All models. 1/2 & 3/4 ton light duty, 2wd, snh 1950/2175 lb. 3/4 & 1 ton heavy duty, 2wd, snh 1950/2175 lb.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 2wd, snl 2500/2750 lb. 3/4 & 1 ton heavy duty, 2wd, snl 2500/2750 lb.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 2wd, snr 3400/3800 lb. All models. 4wd. 7 leaf. 3/4 & 1 ton heavy duty, 2wd, snr 3400/3800 lb.
3
Spring Assembly Mopar
Mopar Notes: PARTS: Order by sales code & capacity.
Description: 1/2 & 3/4 ton light duty, 2wd, snl 2500/2725 lb. 3/4 & 1 ton heavy duty, 2wd, snl 2500/2725 lb.
4
Spring Assembly Bushing Mopar
Mopar Description: 3/4 & 1 ton heavy duty, 1 1/4 od. 1/2 & 3/4 ton light duty, 1 1/4 od.
4
Spring Assembly Bushing Mopar
Mopar Description: All models. 1/2 & 3/4 ton light duty, 1 1/2 od. 3/4 & 1 ton heavy duty, 1 1/2 od.
4
Spring Bushing Mopar
Mopar Description: 4wd. 4 wheel drive - dana 60. 1/2 & 3/4 ton light duty, 1 od. 3/4 & 1 ton heavy duty, 1 od.
6
7
Shackle Bracket Mopar
Mopar Description: 1/2 & 3/4 ton light duty, rear, with 149 wheelbase. 3/4 & 1 ton heavy duty, rear, with 149 wheelbase.
7
Shackle Bracket Mopar
Mopar Description: 1/2 & 3/4 ton light duty, rear, without 149 wheelbase. 3/4 & 1 ton heavy duty, rear, without 149 wheelbase.
8
9
Auxiliary Spring Mopar
Mopar Description: 3/4 & 1 ton heavy duty, 4 leaf. 1/2 & 3/4 ton light duty, 4 leaf.
9
Auxiliary Spring Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 1 leaf. 3/4 & 1 ton heavy duty, 1 leaf.
10
U-Bolt Mopar
Mopar Description: 3/4 & 1 ton heavy duty, 9/16. 1/2 & 3/4 ton light duty, 9/16. B350, all. B350, with 7 leaf.
10
U-Bolt Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 1/2, 8 1/4 length. 3/4 & 1 ton heavy duty, 1/2, 8 1/4 length.
10
U-Bolt Mopar
Mopar Description: 3/4 & 1 ton heavy duty, 1/2, 6 1/4 length. 1/2 & 3/4 ton light duty, 1/2, 6 1/4 length.
10
U-Bolt Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 1/2, 7 1/2 length. 3/4 & 1 ton heavy duty, 1/2, 7 1/2 length.
10
U-Bolt Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 1/2, 10 1/4 length. 3/4 & 1 ton heavy duty, 1/2, 10 1/4 length.
11
U-Bolt Bolt Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 9/16. 3/4-16 x 3.88. 3/4 & 1 ton heavy duty, 9/16.
11
U-Bolt Bolt Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 1/2. 1/2-20 x 3.88. 3/4 & 1 ton heavy duty, 1/2.
11
U-Bolt Bolt Mopar
Mopar Description: 1/2 & 3/4 ton light duty, 5/8. 5/8-18x3.88. 3/4 & 1 ton heavy duty, 5/8.
12
Brake Drum Mopar
Mopar Description: All models. 11x 2.5 brakes. Full size vans. 11x 2.5 drum. 11 x 2 1/2" Brakes. B150 & B250, 1994-02, B150, 11x2.5.
13
Backing Plate Mopar
Mopar Positions: Right
Description: B300, 12x.5. B150 & B250, 1994-02, B250, 12x.5. B350, dana, spicer axle. 3/4 & 1 ton heavy duty, 12 brake. B350, 12x2.5 & 12 x 3.
13
Backing Plate Mopar
Mopar Positions: Left
Description: B300, 12x.5. B150 & B250, 1994-02, B250, 12x.5. B350, dana, spicer axle. 3/4 & 1 ton heavy duty, 12 brake. B350, 12x2.5 & 12 x 3.
13
Backing Plate Mopar
Mopar Description: B100 & 200, 11x2.5. 3/4 & 1 ton, 11x2.5. 3/4 & 1 ton heavy duty, 11 brake. B150 & B250, 1994-02, B150, 11x2.5.
14
Axle Shaft Mopar
Mopar Positions: Left
Description: Full size vans. 9 1/4. 8 studs. All models. Chrysler. 9 1/4. 8 stud. 1/2 & 3/4 ton light duty, 9 1/4 axle, with 8 hole. B150 & B250, B250, 9 1/4 gear with 8 holes. B350, with chrysler axle, with 8 holes.
14
Axle Shaft Mopar
Mopar Positions: Left
Description: All models. 1/2 & 3/4 ton light duty, 9 1/4 axle, with 5 hole. Full size vans. 9 1/4. 5 studs. 9 1/4 gear. B350, with chrysler axle, with 5 hole.
14
Axle Shaft Mopar
Mopar Positions: Left
Description: 1/2 & 3/4 ton light duty, 8 3/8 axle. 8 3/8 ring gear. Chrysler Model 8.25 Axle.
15
Axle Housing Mopar
Mopar Notes: PARTS: Order by year & description.
Description: All models. Chrysler. 8 1/4, 8 3/8 axle. 1/2 & 3/4 ton light duty, 8 3/8 axle. 1/2 ton, 8 3/8 ring gear.
15
Axle Housing Mopar
Mopar Notes: PARTS: Order by year & description.
Description: All models. Chrysler. 9 1/4. 1/2 & 3/4 ton light duty, 9 1/4 axle, 1/2 ton. 1/2 ton, 9 1/4 gear.
No.
Part # / Description / Price
Price
3
Spring Assembly Bushing Mopar
Mopar Description: All models. 1/2 & 3/4 ton light duty, 1 1/2 od. 3/4 & 1 ton heavy duty, 1 1/2 od.
