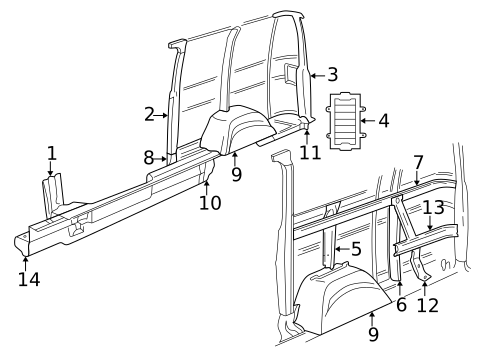

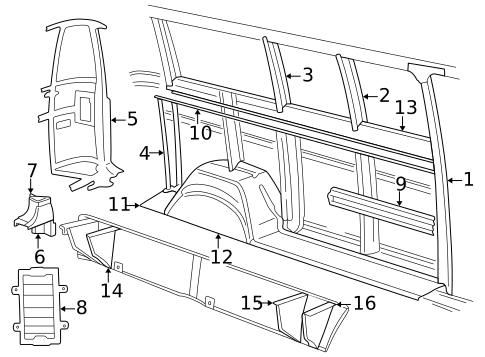

Inner Structure & Rails for 2003 Dodge Ram 2500 Van
No.
Part # / Description / Price
Price
2
Body C-Pillar
Mopar
Mopar Positions: Right
Description: PASSENGER SIDE, 127" WHEELBASE 1998-03. side cargo door sliding door.
2
Body C-Pillar Mopar
Mopar Positions: Right
Description: Passenger side, 127" wheelbase 1998-03. side cargo door dual door.
3
Pillar Mopar
Mopar Positions: Right
Description: Driver side, 109 wheelbase, 1998-03, rear door, single door. Driver side, 127" wheelbase 1998-03. rear door single door. PASSENGER SIDE, 127" WHEELBASE 1998-03. rear door hinge single door.
4
Quarter Panel Vent Mopar
Mopar Positions: Right
Description: Driver side, 127 wheelbase, 1994-97. Passenger side, 127 wheelbase, 1994-97. Driver side, 109 wheelbase, 1994-97. Passenger side, 109 wheelbase, 1994-97. Driver side, 109 wheelbase, 1998-03. Passenger side, 109 wheelbase, 1998-03. Driver side, 127" wheelbase 1998-03. Passenger side, 127" wheelbase 1998-03.
5
Body D-Pillar Reinforcement Mopar
Mopar Positions: Right
Description: Passenger side, 109 wheelbase, 1994-97, corner panel, pillar. Right side van or station wagon, rear. Passenger side, 127 wheelbase, 1994-97, corner panel r, pillar. Passenger side, 109 wheelbase, 1998-03, corner panel, pillar. Passenger side, 127" wheelbase 1998-03. corner panel pillar.
6
Body D-Pillar Reinforcement Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1994-97, corner panel r, sill. Right side van or station wagon, sill. Passenger side, 109 wheelbase, 1994-97, corner panel, sill. Passenger side, 127" wheelbase 1998-03. corner panel sill. Passenger side, 109" wheelbase 1998-03. corner panel sill.
7
Vertical Support Mopar
Mopar Positions: Right
Notes: PARTS: Order by body type & location.
Description: Left side, to wheelhouse, long. Driver side, 127 wheelbase, 1994-97, body side, rear, long. Left side van or station wagon, to wheelhouse, without window. Passenger side, 109 wheelbase, 1994-97, to wheelhouse, without window. Passenger side, 127 wheelbase, 1994-97, to wheelhouse, without window. Passenger side, 127" wheelbase 1998-03. to wheelhouse.
8
Vertical Support Mopar
Mopar Positions: Right
Description: Left side van or station wagon, to corner panel. Right side van or station wagon, to corner panel. Passenger side, 109" wheelbase 1998-03. to corner panel. Passenger side, 127" wheelbase 1998-03. to corner panel. Driver side, 109" wheelbase. Driver side, 127" wheelbase.
9
Quarter Panel Reinforcement Mopar
Mopar Positions: Right
Notes: PARTS: Order by body type & location.
Description: Passenger side, 127" wheelbase 1994-97. with extended body. Passenger side, 127" wheelbase 1998-03. with extended body.
9
Quarter Panel Reinforcement Mopar
Mopar Positions: Right
Notes: PARTS: Order by body type & location.
Description: Passenger side, 127 wheelbase, 1994-97, without extended body. Passenger side, 127" wheelbase 1998-03. without extended body.
11
12
Wheel Housing Side Panel Mopar
Mopar Positions: Right
Description: Passenger side, 109 wheelbase, 1998-03. Passenger side, 109 wheelbase, 1994-97. Right side van or station wagon. Passenger side, 127 wheelbase, 1994-97. Passenger side, 127" wheelbase 1998-03.
13
Panel Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1998-03, side to underbody, front. Passenger side, 127 wheelbase, 1994-97, side to underbody. Passenger side, 109 wheelbase, 1994-97, side to underbody. Passenger side, 109 wheelbase, 1998-03, side to underbody.
14
Panel Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1998-03, side to underbody, rear.
15
Wheelhouse Extension Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1994-97, without sliding door. Right side van or station wagon, without sliding door. Passenger side, 109 wheelbase, 1994-97, without sliding door. Passenger side, 109" wheelbase 1998-03. without sliding door. Passenger side, 127" wheelbase 1998-03. without sliding door.
16
Spare Bracket Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1994-97, vertical. Passenger side, 109 wheelbase, side mounted, 1994-97. Right side van or station wagon, vertical. Passenger side, 109 wheelbase, 1994-97, vertical. Passenger side, 109 wheelbase, 1998-03, vertical. Passenger side, 127" wheelbase 1998-03. vertical.
17
Spare Bracket Mopar
Mopar Positions: Right
Description: Right side, upper. Passenger side, 127 wheelbase, 1994-97, horizontal. Right side van or station wagon, horizontal. Passenger side, 109 wheelbase, 1994-97, horizontal. Passenger side, 109 wheelbase, 1998-03, horizontal. Passenger side, 127" wheelbase 1998-03. horizontal.
18
Rocker Panel Mopar
Mopar Positions: Right
Description: Passenger side, 109 wheelbase, 1998-03, with step, hinged door. Passenger side, 127" wheelbase 1998-03. with step hinged door.
18
Rocker Panel Mopar
Mopar Positions: Right
Description: Passenger side, 109 wheelbase, 1994-97, with step, sliding door. Passenger side, 127 wheelbase, 1994-97, with step, sliding door. Passenger side, 109 wheelbase, 1998-03, with step, sliding door. Passenger side, 127" wheelbase 1998-03. with step sliding door.
No.
Part # / Description / Price
Price
4
Vertical Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Left side van or station wagon, to corner panel. Right side van or station wagon, to corner panel. Passenger side, 109" wheelbase 1998-03. to corner panel. Passenger side, 127" wheelbase 1998-03. to corner panel. Driver side, 109" wheelbase. Driver side, 127" wheelbase.
5
Pillar Mopar
Mopar Positions: Left
Description: Driver side, 109 wheelbase, 1998-03, rear door, single door. Driver side, 127" wheelbase 1998-03. rear door single door. PASSENGER SIDE, 127" WHEELBASE 1998-03. rear door hinge single door.
5
Hinge Pillar Mopar
Mopar Positions: Left
Description: Driver side, 109 wheelbase, 1998-03, rear door, dual door. Driver side, 109 wheelbase, 1994-97, rear door, dual door. Driver side, 127 wheelbase, 1994-97, rear door, dual door. Driver side, 127" wheelbase 1998-03. rear door dual door.
7
Reinforcement Sill Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03. Driver side, 109 wheelbase, 1998-03, sill. Driver side, 127 wheelbase, 1994-97. Driver side, 109 wheelbase, 1994-97, sill. Left side van or station wagon, sill.
8
Quarter Panel Vent Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1994-97. Passenger side, 127 wheelbase, 1994-97. Driver side, 109 wheelbase, 1994-97. Passenger side, 109 wheelbase, 1994-97. Driver side, 109 wheelbase, 1998-03. Passenger side, 109 wheelbase, 1998-03. Driver side, 127" wheelbase 1998-03. Passenger side, 127" wheelbase 1998-03.
9
Quarter Panel Reinforcement Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03, front. Driver side, 109" wheelbase 1998-03. front.
10
Upper Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Driver side, 127 wheelbase, 1998-03, rear, with extended body. Driver side, 127 wheelbase, 1994-97, with extended body.
10
Upper Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Driver side, 127 wheelbase, 1998-03, rear, without extended body. Driver side, 127 wheelbase, 1994-97, without extended body.
11
Wheel Housing Side Panel Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1994-97. Left side van or station wagon. Driver side, 109 wheelbase, 1994-97. Driver side, 109 wheelbase, 1998-03. Driver side, 127" wheelbase 1998-03.
13
Panel Mopar
Mopar Positions: Left
Description: Driver side, 109 wheelbase, 1998-03, side to underbody. Driver side, 127 wheelbase, 1994-97, side to underbody. Driver side, 127 wheelbase, 1998-03, side to underbody. Driver side, 109 wheelbase, 1994-97, side to underbody.
15
Latch Support Mount Bracket Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03, rear spring, front. Driver side, 109 wheelbase, 1998-03, rear spring.
16
Latch Support Mount Bracket Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03, rear spring, rear. Driver side, 109 wheelbase, 1994-97, rear spring. Driver side, 127 wheelbase, 1994-97, rear spring.
17
Latch Support Bracket Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03, front. Driver side, 109" wheelbase 1998-03. front.
18
Latch Support Bracket Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03, rear. Driver side, 109" wheelbase 1998-03. rear.
No.
Part # / Description / Price
Price
2
Sill End Panel Mopar
Mopar Positions: Right
Description: Left side, 109 wheelbase, with sliding door. Passenger side, 109 wheelbase, 1994-97, sliding door. Right side van or station wagon, sliding door, 109 wheelbase. Passenger side, 109" wheelbase 1998-03. sliding door.
2
Body C-Pillar Mopar
Mopar Positions: Right
Description: PASSENGER SIDE, 109" WHEELBASE 1998-03. side cargo door hinged door.
3
Pillar Mopar
Mopar Positions: Right
Description: Right side van or station wagon, rear, single door. Passenger side, 127 wheelbase, 1994-97, rear door hinge, single door. Passenger side, 109 wheelbase, 1994-97, rear door hinge, single door. PASSENGER SIDE, 109" WHEELBASE 1998-03. rear door hinge single door.
3
Body D-Pillar Mopar
Mopar Positions: Right
Description: Passenger side, 109 wheelbase, 1994-97, rear door hinge, dual door. Passenger side, 109 wheelbase, 1998-03, rear door hinge, hinged door. Passenger side, 127 wheelbase, 1994-97, rear door hinge, dual door. Passenger side, 127" wheelbase 1998-03. rear door hinge dual door.
5
Vertical Support Mopar
Mopar Positions: Right
Notes: PARTS: Order by body type & location.
Description: Right side, to wheelhouse, short. Driver side, 109 wheelbase, 1994-97. Passenger side, 127 wheelbase, 1994-97, to wheelhouse, with window. Right side van or station wagon, to wheelhouse, with window. Passenger side, 109 wheelbase, 1994-97, to wheelhouse, with window. Passenger side, 109" wheelbase 1998-03. to wheelhouse.
7
Quarter Panel Reinforcement Mopar
Mopar Positions: Right
Notes: PARTS: Order by body type & location.
Description: Passenger side, 109 wheelbase, 1994-97. Passenger side, 109" wheelbase 1998-03.
8
Sill End Panel Mopar
Mopar Positions: Right
Description: Right side, 109 wheelbase, without sliding door. Passenger side, 109 wheelbase, 1994-97, hinged door. Right side van or station wagon, hinged door, 109 wheelbase. Passenger side, 109" wheelbase 1998-03. hinged door.
10
Wheelhouse Extension Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1994-97, without sliding door. Right side van or station wagon, without sliding door. Passenger side, 109 wheelbase, 1994-97, without sliding door. Passenger side, 109" wheelbase 1998-03. without sliding door. Passenger side, 127" wheelbase 1998-03. without sliding door.
10
Wheelhouse Extension Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1994-97, with sliding door. Right side van or station wagon, with sliding door. Passenger side, 127 wheelbase, 1998-03, with sliding door. Passenger side, 109 wheelbase, 1994-97, with sliding door. Passenger side, 109" wheelbase 1998-03. with sliding door.
No.
Part # / Description / Price
Price
2
Vertical Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Driver side, 109 wheelbase, 1994-97, body side, front. Right side van or station wagon, without window, 57. Driver side, 127 wheelbase, 1994-97, body side, front, 57 long. Driver side, 109" wheelbase 1998-03. body side, front 57" long. Driver side, 127" wheelbase 1998-03. body side front.
3
Vertical Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Left side, without window, short. Driver side, 109 wheelbase, 1994-97, body side, rear. Right side van or station wagon, without window, short. Driver side, 127 wheelbase, 1994-97, body side, rear, short. Driver side, 109" wheelbase 1998-03. body side, rear. Driver side, 127" wheelbase 1998-03. body side rear.
4
Vertical Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Driver side, 109 wheelbase, 1994-97, corner panel. Driver side, 109" wheelbase 1998-03. body side, corner.
6
Body D-Pillar Reinforcement Mopar
Mopar Positions: Left
Description: Driver side, 109 wheelbase, 1998-03, pillar. Driver side, 127 wheelbase, 1994-97, pillar. Driver side, 109 wheelbase, 1994-97, pillar. Left side van or station wagon, rear. Driver side, 127" wheelbase 1998-03. pillar.
7
Reinforcement Sill Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03. Driver side, 109 wheelbase, 1998-03, sill. Driver side, 127 wheelbase, 1994-97. Driver side, 109 wheelbase, 1994-97, sill. Left side van or station wagon, sill.
10
Upper Support Mopar
Mopar Positions: Left
Notes: PARTS: Order by body type & location.
Description: Driver side, 109 wheelbase, 1994-97. Driver side, 109" wheelbase 1998-03. rear.
13
Latch Support Mopar
Mopar Positions: Left
Description: Driver side, 109 wheelbase, 1998-03, vent window. Driver side, 127" wheelbase 1998-03. vent window.
14
Latch Support Mount Bracket Mopar
Mopar Positions: Left
Description: Driver side, 127 wheelbase, 1998-03, rear spring, front. Driver side, 109 wheelbase, 1998-03, rear spring.
Related Parts
Part # / Description / Price
Price
Quarter Panel Filler Panel Mopar
Mopar Positions: Right
Description: Passenger side, 109 wheelbase, 1998-03, side dr, upper rear. Left side, side door. Passenger side, 127 wheelbase, 1994-97, side door pillar, upper rear, side door pillar, upper rear. Right side van or station wagon, side door/upper rear. Passenger side, 109 wheelbase, 1994-97, side dr, upper rear. Passenger side, 127" wheelbase 1998-03. side dr, upper rear.
Wheelhouse Mount Bracket Mopar
Mopar Positions: Right
Description: Passenger side, 127 wheelbase, 1998-03, rear spring. Passenger side, 109 wheelbase, 1998-03, rear spring. Passenger side, 109 wheelbase, 1994-97, rear spring. Passenger side, 127 wheelbase, 1994-97, rear spring.
